4 July 2025 (updated) BMW E46 Rear Subframe Mount Failure and Essential Reinforcement Solutions
The BMW E46 3-series represents one of the marque's most beloved generations, yet beneath its refined exterior lies a critical structural weakness that affects every model produced. The rear subframe mounting points are prone to catastrophic failure, creating safety risks and expensive repair bills for owners worldwide. Understanding this inevitable issue and taking preventative action can save both money and potentially lives.
What Causes BMW E46 Subframe Mount Failure

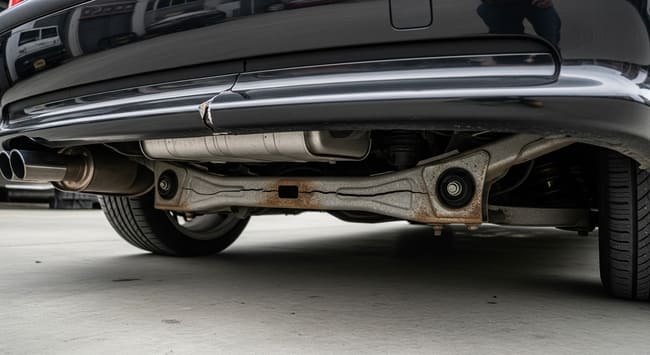

BMW E46 subframe mount failure occurs through a process called fatigue cracking. Unlike sudden structural failure from excessive force, fatigue failure develops gradually as repeated stress cycles weaken the metal over time. The rear subframe transmits torque from the differential into the chassis through four mounting points located beneath the boot floor.
Each time you accelerate, change gear, or apply the brakes, the subframe flexes against these mounting points. The sheet metal around the attachment points experiences stress cycles that progressively weaken the material until cracks begin to form. Higher-powered variants like the M3 typically fail sooner due to increased torque loads, though all E46 models remain vulnerable regardless of engine size or driving style.
The mounting points consist of threaded inserts spot-welded to the Rear Axle Carrier Panel (RACP). These spot welds represent the weakest link in the load transfer chain, eventually failing under repeated stress cycles. Worn rubber subframe bushings exacerbate the problem by allowing additional movement and twisting forces.
Identifying E46 Subframe Mount Problems
Early detection of subframe mount deterioration can prevent catastrophic failure and expensive emergency repairs. Several key areas require regular inspection to monitor the structural integrity of your E46's rear mounting system.
Visual Inspection Points
Regular inspection of your E46's subframe mounting area can reveal early warning signs before catastrophic failure occurs. The most accessible inspection points include the front right and rear left subframe mounts, visible from beneath the vehicle with the rear wheels removed.
Look for hairline cracks radiating outward from the mounting points, particularly on the underside face where the subframe bushing contacts the chassis. Bulging or distortion around the mounting area indicates advanced failure where the threaded insert is beginning to separate from the surrounding metal.
Sold by AUTODOC Sold by AUTODOC Sold by AUTODOC Sold by AUTODOC
-52%
Article number: BM0143206
compared to
RRP
£49.21
£23.49price incl. 20% VAT, excl. delivery costs
Article number: BM1251632
£27.49price incl. 20% VAT, excl. delivery costs
-37%
Article number: 0640681
compared to
RRP
£43.80
£27.49price incl. 20% VAT, excl. delivery costs
-49%
Article number: 1213014
compared to
RRP
£43.34
£21.99price incl. 20% VAT, excl. delivery costs
Design Changes Affecting Failure Patterns
BMW implemented a significant design change in February 2000 that altered how subframe mount failure manifests. Pre-February 2000 models feature threaded inserts secured with three MIG welds at the top and spot welds beneath. When these fail, the entire insert can tear through the floor, creating a dramatic hole.
Models built after February 2000 incorporate additional flanges and reinforcement welds that prevent the insert from tearing out completely. Instead, failure spreads throughout the RACP structure, creating multiple crack points that can be more challenging to identify and repair.
You can determine which system your E46 uses by examining the vertical face behind the differential. Later models display two rectangular indents in front of the mounting points, whilst earlier models lack these features.
Secondary Failure Areas
The rear wheel arch represents another critical inspection point often overlooked during subframe mount repairs. Failure typically occurs behind the rear left damper at the bottom of the wheel arch, visible as splits in the seam sealer approximately 5mm above the bottom edge.
From beneath the vehicle, look for popped spot welds on the inner wheel arch flange. The rear right wheel arch may develop cracks on the inboard side just above the spot welds, eventually propagating upward toward the spring perch.
Structural Reinforcement Solutions
Addressing E46 subframe mount failure requires comprehensive structural work that goes beyond simple crack welding. The most effective repairs combine proper welding techniques with reinforcement systems designed to prevent future failures.
Professional Welding Repairs
Proper E46 subframe mount repair requires structural welding to reinforce the failed areas and prevent future cracking. Simply welding existing cracks closed without additional reinforcement will only delay inevitable re-failure.
Effective repairs involve cutting out severely damaged sections and welding in new metal, then adding reinforcement plates to distribute loads over a larger area. This approach mirrors BMW's solution for similar problems on the earlier E36 generation.
The repair process typically requires removing interior trim, fuel tank, and exhaust components to access all failure points.
Professional welders experienced with automotive structural repairs should undertake this work, as improper welding can compromise crash safety performance.
Reinforcement Plate Systems
Several aftermarket companies manufacture reinforcement plate systems designed specifically for E46 subframe mount strengthening. These plates bolt or weld to both the underside and topside of the RACP structure, effectively creating a stronger mounting foundation.
Quality reinforcement systems address not only the primary mounting points but also the secondary failure areas in the wheel arches. When sourcing replacement components, the experts from Autodoc have BMW E46 subframes and related parts available for replacement if comprehensive repairs aren’t feasible.
Sold by AUTODOC Sold by AUTODOC Sold by AUTODOC Sold by AUTODOC
NTY Support Frame, engine carrier
Front Axle
Article number: ZRZ-BM-000
£201.50
-37%
Article number: 0646690
compared to
RRP
£334.90
£208.00price incl. 20% VAT, free delivery
-21%
NTY Axle Beam
Rear Axle
Article number: ZRZ-BM-003
compared to
RRP
£500.11
£394.50
Article number: 1219214
£85.99
Preventative Measures
Replacing worn subframe bushings with higher-quality alternatives can reduce the stress cycles that cause fatigue failure. Polyurethane bushings offer improved durability over original rubber components, though they may increase noise transmission into the cabin.
Regular inspection schedules allow early detection of developing cracks before they become safety-critical. Annual examination of the mounting points and wheel arch areas takes minimal time but can prevent expensive emergency repairs.
Safety Implications and Urgency
E46 subframe mount failure poses serious safety risks extending beyond mere inconvenience or repair costs. The subframe houses the differential and provides mounting points for suspension components, including the springs that support the vehicle's weight.
Complete subframe separation can cause sudden loss of vehicle control, potentially leading to accidents. The compromised structural integrity also reduces occupant protection in the event of a rear-end collision, as the damaged RACP cannot effectively distribute crash forces.
Given these safety implications, addressing subframe mount problems should be considered urgent maintenance rather than optional improvement. Continuing to drive with visible cracks risks sudden catastrophic failure that could endanger occupants and other road users.
Conclusion
The BMW E46 subframe mount issue represents a known design weakness that affects all models within the generation. Early detection through regular inspection, combined with proper structural reinforcement, can maintain both safety and vehicle value whilst preserving the driving experience that makes these cars so cherished.
