BMW E46 VANOS Seal Failure: Why Your Engine Is Losing Power and How to Fix It
If you own a BMW E46 (1999-2006) and have noticed reduced power at low revs, rough idling, or that dreaded "marbles in a tin can" rattling sound, you're likely dealing with one of the most widespread issues affecting these vehicles: VANOS seal failure. This problem affects virtually every E46 model with a 6-cylinder engine, making it one of the most common maintenance concerns for BMW enthusiasts.
What Exactly Is the BMW E46 VANOS Problem?
The Variable Valve Timing (VANOS) system in BMW E46 models uses hydraulic pressure to adjust camshaft timing, optimising engine performance across different RPM ranges. However, BMW fitted these systems with piston seals made from BUNA rubber (also known as Nitrile or NBR), which simply isn't up to the job.
The core issue lies in material selection. BUNA rubber has a temperature limit of just 100°C (212°F), but engine bay temperatures routinely exceed this threshold. Under constant exposure to heat and engine oil, these seals harden, lose elasticity, and develop compression set (permanent flattening). Once compromised, the seals can no longer maintain proper hydraulic pressure, causing the VANOS system to malfunction.
AUTODOC professionals recommend addressing this issue proactively, as seal deterioration typically begins around 20,000 miles and becomes significant by 50,000 miles.
Which BMW Models Are Affected?
The VANOS seal problem affects all BMW E46 models equipped with 6-cylinder engines, including:
| Engine Code |
Models Affected |
Years |
| M52TU |
323i, 328i, 323Ci, 328Ci |
1998-2000 |
| M54 |
325i, 330i, 325Ci, 330Ci |
2001-2006 |
| M56 |
Various models |
2002-2005 |
The issue also extends to other BMW models using the same VANOS unit, including E39 5-Series, E38/E65 7-Series, Z3, Z4, X3, and X5 models from the same era.
How to Spot VANOS Seal Failure: The Warning Signs
Recognising VANOS seal failure early can save you from more extensive engine problems. Here are the key symptoms to watch for:
- Significant power loss below 3,000 RPM
- Engine hesitation during acceleration
- Bogging followed by sudden surging around 3,000 RPM
- Reduced performance when air conditioning is running
- Increased fuel consumption
Idle and Starting Issues
- Rough, uneven idling
- Cold-start problems, particularly in winter (more common on M52TU engines)
- Engine stalling on cold starts
- Idle speed fluctuations
Audible Symptoms
- Louder than normal idle
- Intermittent RPM hiccups
- Potential rattling sound (though this may indicate additional VANOS rattle issues)
When Does This Problem Typically Occur?
The timeline for VANOS seal failure is unfortunately predictable:
| Mileage |
Condition |
Action Required |
| 20,000 miles |
Seals begin deteriorating |
Monitor symptoms |
| 50,000 miles |
Seals significantly compromised |
Replacement recommended |
| 80,000+ miles |
Severe performance impact likely |
Urgent replacement needed |
AUTODOC experts point out that this deterioration occurs regardless of maintenance quality or driving style – it's simply a result of inadequate material specification from BMW.
Your Repair Options: DIY vs Professional
DIY Seal Replacement
Replacing VANOS seals is entirely possible for competent home mechanics. The procedure involves removing the VANOS unit and replacing the failed BUNA seals with superior Viton alternatives, along with new PTFE (Teflon) seal rings.
DIY Requirements:
- 6-8 hours for first-time DIY mechanics
- Basic hand tools plus some specialised items
- Detailed procedure guides (readily available online)
- Quality replacement seals (£60-130 for complete kits)
DIY Advantages:
- Significant cost savings
- No timing chain complications (unlike single VANOS systems)
- Comprehensive guides available
- Opportunity to inspect other components

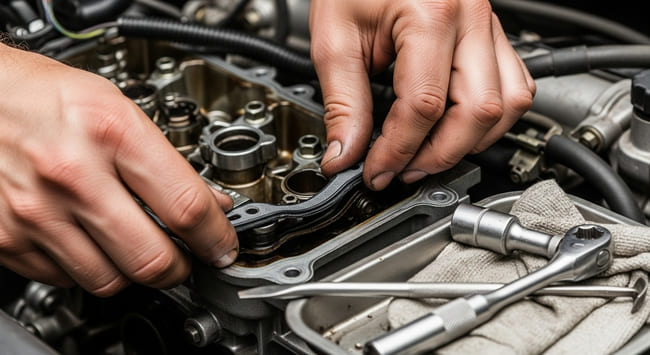

Many DIY mechanics choose to replace the valve cover gasket during VANOS seal replacement, as both components are accessed through similar disassembly procedures. This approach maximises efficiency and ensures comprehensive sealing system maintenance.
Professional Repair Options
If you prefer professional installation, you have several choices:
Seal Replacement Service:
- Cost: £300-600 labour plus parts
- Uses upgraded Viton/PTFE materials
- Maintains original VANOS unit
Rebuilt VANOS Unit:
- Cost: £800-1,300 including installation
- Complete unit replacement
- Often includes core exchange programmes
The Solution: Upgraded Materials Make All the Difference
The permanent fix involves replacing the original BUNA seals with materials designed for high-temperature engine environments:
- Viton O-rings: Temperature rated to 204°C (400°F)
- PTFE seal rings: Superior wear resistance and chemical compatibility
- Upgraded gaskets: Complete sealing system renewal
These upgraded materials address the root cause rather than simply replacing like-with-like, providing a long-term solution that should last the vehicle's lifetime.
Results You Can Expect After Repair
Owners consistently report dramatic improvements following proper VANOS seal replacement:
- Restored low-end torque and power delivery
- Smoother idle and throttle response
- Improved fuel economy
- Elimination of cold-start issues
- Overall engine refinement restoration
Many describe the transformation as getting their engine back to "showroom condition" performance levels. To maintain these improvements long-term, ensure you're using a quality oil filter during regular service intervals, as clean oil is crucial for preserving the upgraded seal materials and optimal VANOS operation.
Conclusion
BMW E46 VANOS seal failure is an inevitable maintenance item rather than an optional repair. The original BUNA seal material is fundamentally unsuited to the engine environment, making failure a question of when, not if. However, with proper upgraded materials and either DIY capability or professional installation, this issue can be permanently resolved, restoring your BMW's performance and reliability for years to come.
Frequently Asked Questions (FAQ)
Q: Is VANOS seal failure dangerous to drive with?
A: While not immediately dangerous, continued driving with failed seals will progressively worsen engine performance and fuel economy. The system won't cause catastrophic engine damage, but repair becomes more urgent as symptoms intensify.
Q: Can I just replace the BMW OEM seals instead of upgraded ones?
A: Replacing with original BMW seals will only provide a temporary fix, as they're made from the same inadequate BUNA material. You'll face the same failure within 20,000-50,000 miles. Upgraded Viton seals provide a permanent solution.
Q: Will VANOS seal replacement affect my engine timing?
A: No, replacing seals on E46 double VANOS systems doesn't affect engine timing. The camshaft timing remains unchanged throughout the procedure, making it much simpler than single VANOS repairs on earlier models.
Q: How can I tell if my VANOS seals need replacing without removing the unit?
A: The most reliable indicator is reduced power below 3,000 RPM combined with rough idle. On M52TU engines, cold-start jolting is a definitive sign. However, definitive diagnosis requires VANOS removal and physical inspection.
Q: Should I replace the anti-rattle kit at the same time as the seals?
A: Only if you're experiencing actual rattling noises. The anti-rattle kit addresses a separate issue from seal failure. If your engine doesn't rattle, the additional expense and complexity aren't necessary during seal replacement.
